In today's increasingly connected world, reliable and high-quality power is essential. Whether you're powering sensitive electronic devices or running appliances off-grid, choosing the right inverter is crucial. One such option gaining popularity is the pure sine wave inverter. In this blog, we will explore what a pure sine wave inverter is, how it operates, and the different installation options available. Please continue reading to learn more!

What is a Pure Sine Wave Inverter?

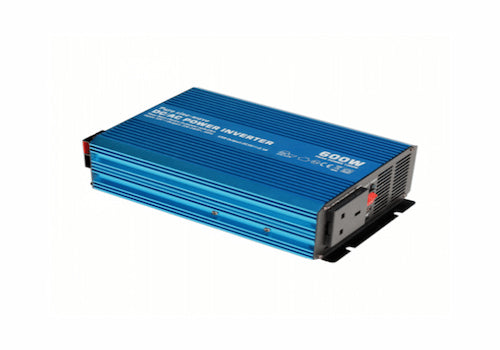

A pure sine wave inverter is an electronic device that converts direct current (DC) power from a battery or solar panel into alternating current (AC) power that can be used to run household appliances and electronic devices. It produces a clean and stable AC wave that closely mimics the utility power grid's power supply, making it ideal for running sensitive electronic equipment that requires a stable and consistent power supply.

How Does a Pure Sine Wave Inverter Work?

A pure sine wave inverter operates by taking DC power from a battery or solar panel and passing it through an oscillator circuit, resulting in a high-frequency AC signal. The AC signal is then transformed to the desired voltage level by passing it through a transformer. Following this, the output of the transformer is filtered to produce a clean and stable sine wave. This way, the inverter ensures that the electronic devices and appliances receive a continuous and reliable power supply.

Benefits of Choosing a Pure Sine Wave Inverter

Here are some benefits of choosing a pure sine wave inverter:

1. Compatibility: Pure sine wave inverters are compatible with a wide range of devices, ensuring that you can power your electronics without any compatibility issues. Anker Solar Generator 757 harmonizes perfectly with pure sine wave inverters, allowing you to efficiently energize your devices wherever you go.
{{ component: "product", handle: "b1770", sku: "B1770111"}}
2. Clean power output: Pure sine wave inverters provide stable and high-quality power, minimizing the risk of damage or interference to your sensitive electronics.
3. Energy efficiency: These inverters are highly efficient in converting DC power to AC power, resulting in less energy wastage and extended battery life.
4. Quiet operation: Pure sine wave inverters operate silently, without producing any noticeable humming or buzzing sounds, allowing for a peaceful environment.

How to Install a Pure Sine Wave Inverter?

There are several types of pure sine wave inverters that you can install, depending on your power needs and setup. Below are three common options:

Install Pure Sine Wave Inverters of Plug & Play

Pure Sine Wave Inverters of Plug & Play are convenient units that combine an inverter and a battery in a single housing. The installation process is simple since the wiring from the battery is already connected to the inverter.

These units are designed to charge the battery using the regular domestic electricity supply. In the event of a power outage, the inverter draws power from the battery to provide a stable 120V AC output for the connected appliances.

The installation of a Plug & Play inverter involves a two-way process. Initially, the inverter converts 120V AC to 12V DC to charge the battery. Then, it converts the 12V DC power from the battery back to 120V AC to supply electricity to the connected devices. The following are installation process:

• To install a Plug & Play inverter, start by determining the power requirements of the devices you want to connect. Check the power rating (in watts) or the amps required by each device. Ensure that the inverter can provide sufficient power.

• Once you have verified the power compatibility, simply plug the inverter into a wall socket and connect your device to the socket on the inverter. Make sure the battery is fully charged before testing the inverter. You can do this by switching off the power from the wall socket and checking if your device continues to operate.

Installing a Plug & Play inverter is a straightforward process that allows for easy and convenient use of backup power during outages.

Install Pure Sine Wave Inverters that Connect to the Solar Panel System

If you have a solar panel system, it's possible to install a pure sine wave inverter that directly connects to the system. This type of inverter usually includes a built-in charge controller, which controls the power flow from the solar panels to the battery bank and subsequently to the inverter. The following are specific operations:

1. Select a pure sine wave inverter compatible with your solar panel system.
2. Install the inverter in a safe and accessible location near the solar panel system.
3. Connect the positive and negative terminals of the solar panels to the corresponding terminals on the inverter.
4. If the inverter has a battery charging feature, connect the solar panel system to the battery terminals on the inverter.
5. Connect your electronic devices or appliances to the inverter's AC outlets.

What to Consider When Buying A Pure Sine Wave Inverter?

When purchasing a pure sine wave inverter, you need to consider multiple factors to ensure that you get the right inverter that meets your requirements:

Knowing What Wattage Pure Sine Wave Inverter to Buy

The wattage of the inverter that you need will depend on the power requirements of the devices you want to run. Add up the wattage of all devices you wish to power at the same time and give a 20-30% safety margin.

For instance, if you want to run a laptop (50W), TV (200W), and refrigerator (500W), then you'll require an inverter with a minimum capacity of 900W (50+200+500 = 750W + 30% safety margin = 975W).

Matching Your Battery Capacity

When purchasing a Pure Sine Wave Inverter, it is also important to match its battery capacity to your specific needs. To calculate the needed battery capacity, follow these steps:

• Determine the wattage of the devices you intend to power using the inverter.
• Find the amps by dividing the wattage by the voltage (12V or 24V). For example, if you have a 100W device and a 12V inverter, the amps required will be 8.33A.
• Estimate the number of hours you will need to run the devices on the battery.
• Multiply the total amps required by the estimated running time in hours to get the ampere-hours (AH) rating for the battery. For instance, if you have a 100W device powered by a 12V inverter, requiring 8.33A, and you want to run it for three hours, then the AH rating needed for your battery will be 25AH (8.33A x 3 hours).

Final Thoughts

In conclusion, Pure Sine Wave Inverters are reliable devices that convert DC power from batteries or solar panels into clean and stable AC power, suitable for powering electronic devices and appliances. The installation process varies depending on the type of inverter. When buying a Pure Sine Wave Inverter, consider the required wattage for your devices and choose a compatible battery capacity to ensure optimal performance. Overall, installing a Pure Sine Wave Inverter provides a convenient and efficient solution for reliable power supply in various situations.
